Part Number: 04-712

Features a 3-position cutting turret containing a glass scoring wheel, scoring tip for scoring acrylic materials and a cutting blade for picture frame matboard and foam board materials up to 1/4” (6mm). A ramping feature allows the lifting of scoring wheel on top edge of glass resulting in a cleaner edge break when scoring glass. Handles material sheets up to 60” high (1.52m). Mounts on wall or freestanding installation.


Substrate Cutting Capabilities


Glass Up to 1/4” (6mm)
Mirror Up to 1/4” (6mm)
Acrylic Up to 1/4” (6mm)
Matboard 4, 8, 12 ply
Foamboard Up to 1/4” (6mm)

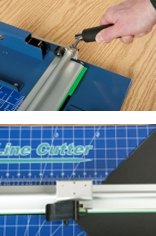

3-Position Turret Cutting Head

The 3000 Wall Machine features a 3-position cutting turret that contains a glass cutting wheel unit, plastic scoring blade, and mat/form board cutting blade mounted in their respective positions on the turret for quick changeover from one material to another.


Purchase Package
  F3000 Purchase Package
(1) 3000 unit (Main frame assembled, requires right support assembly by customer)
(10) Mat/Foamboard Blades
(10) Plastic Scoring Blades
(10) Glass Wheel Units
(4) Wall Mounting Brackets
(1) Manual
Options & Replacement Accessories
P/N Description
04-101 Optional Mounting Stand
04-112 F3000 Measuring Stop
05-001 M3000 Blades (10/tube)
05-003 M3000 Blades (100/box)
05-712  Acrylic/Plastic Scoring Blade (10/tube) (APB-12)
02-118 Steel Glass Wheel Unit, 114° (10/tube)
02-120 Steel Glass Wheel Unit, 120° (10/tube) (SU01)
02-123 Steel Glass Wheel Unit, 134° (10/tube)
Sales & Technical Documents
3000-series-owners-manual.pngProduct
Manual



Stand
Assembly
Instructions
3000-multi-material-cutter-squaring-instructions.pngMachine
Squaring
Instructions
Fletcher 3000
Multi-Material Cutter




Unique Performance Features

  • 3-postion cutting turret for quick blade changes - Glass scoring, matboard cutting and acrylic scoring
  • Patented glass cutting turret has a ramping feature that allows the lifting of turret device on top edge of glass resulting in a cleaner edge break.
  • Wall mounted or free-standing




Acrylic Scoring Blade - P/N 05-712



Tech Specs & Dimensions

Vertical Cutting Capacity: 60" (1.52m)

Cutting Head: Rides on high tensile strength steel, hard chrome plated and polished, resulting in smoother gliding action for consistent cutting head performance and longevity.

Vertical Bars: Rails do not bend or flex during the cutting process for straight, accurate cutting over the entire substrate height.

Material Clamping System: Patented lever-type clamping system that secures in place substrate heights up to 60" (152cm) to prevent buckling and shifting of material during the cutting process.

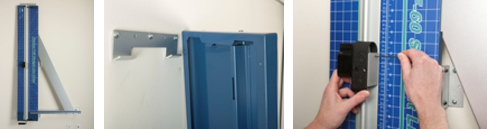

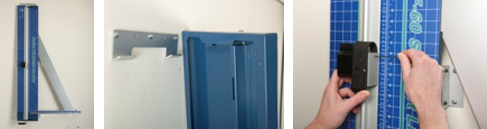

  Wall Mounting
Height 72" (183 cm)
Width 80" (203cm)
Depth 11.64" (30cm)
Weight 70 lbs / 32kg
Cut Capacity 60” (152cm)
Needed Wall Space 36.38 sq. ft.  (3.38sqm)
Shipping Weight 80 lbs /36kg
