AMP™ T-400 EVO Pneumatic Double Miter Saw

The AMP™ T-400 EVO saw is designed to cut 45-degree miters precisely for picture framing and woodworking applications such as windows, doors, and furniture components.

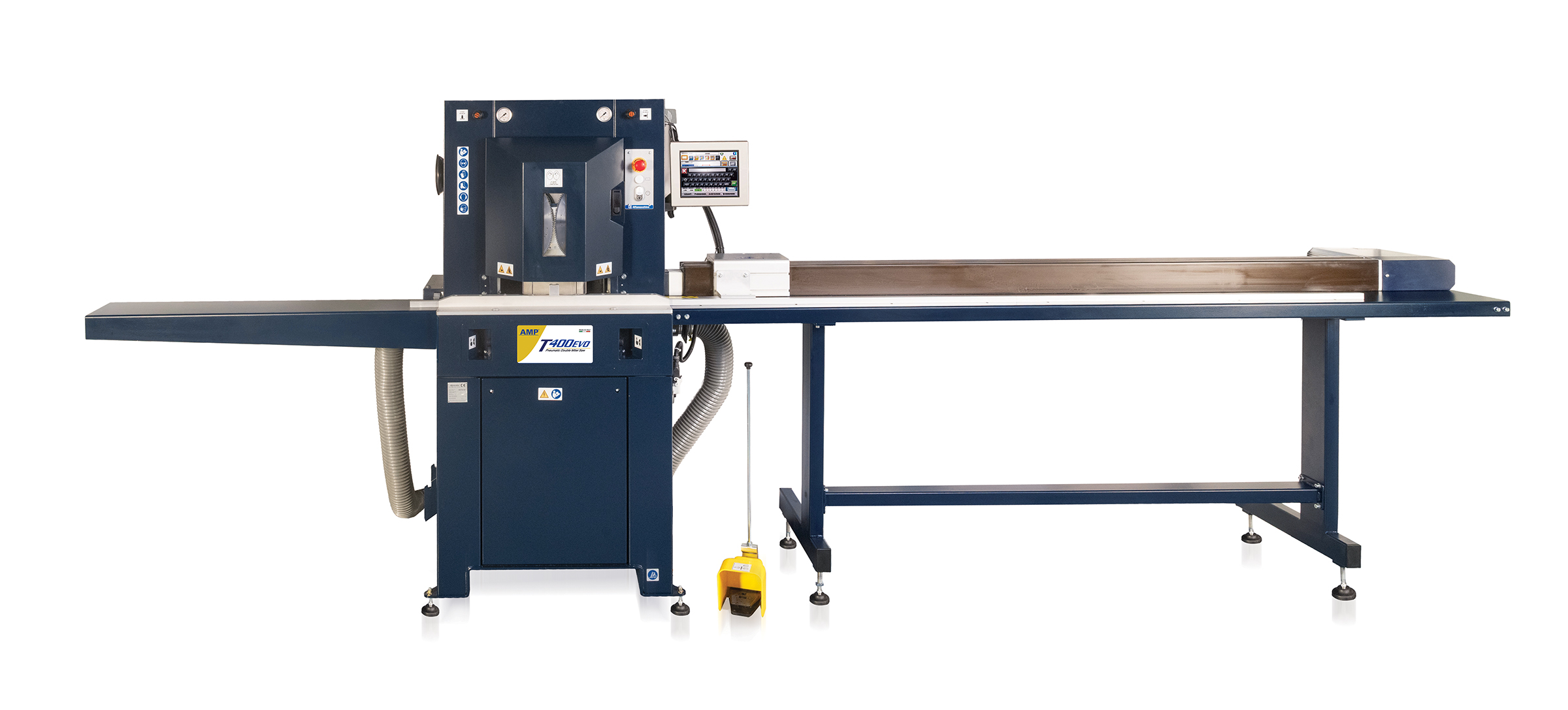

A blue industrial machine with a central control panel and long horizontal arms, designed for precision work.

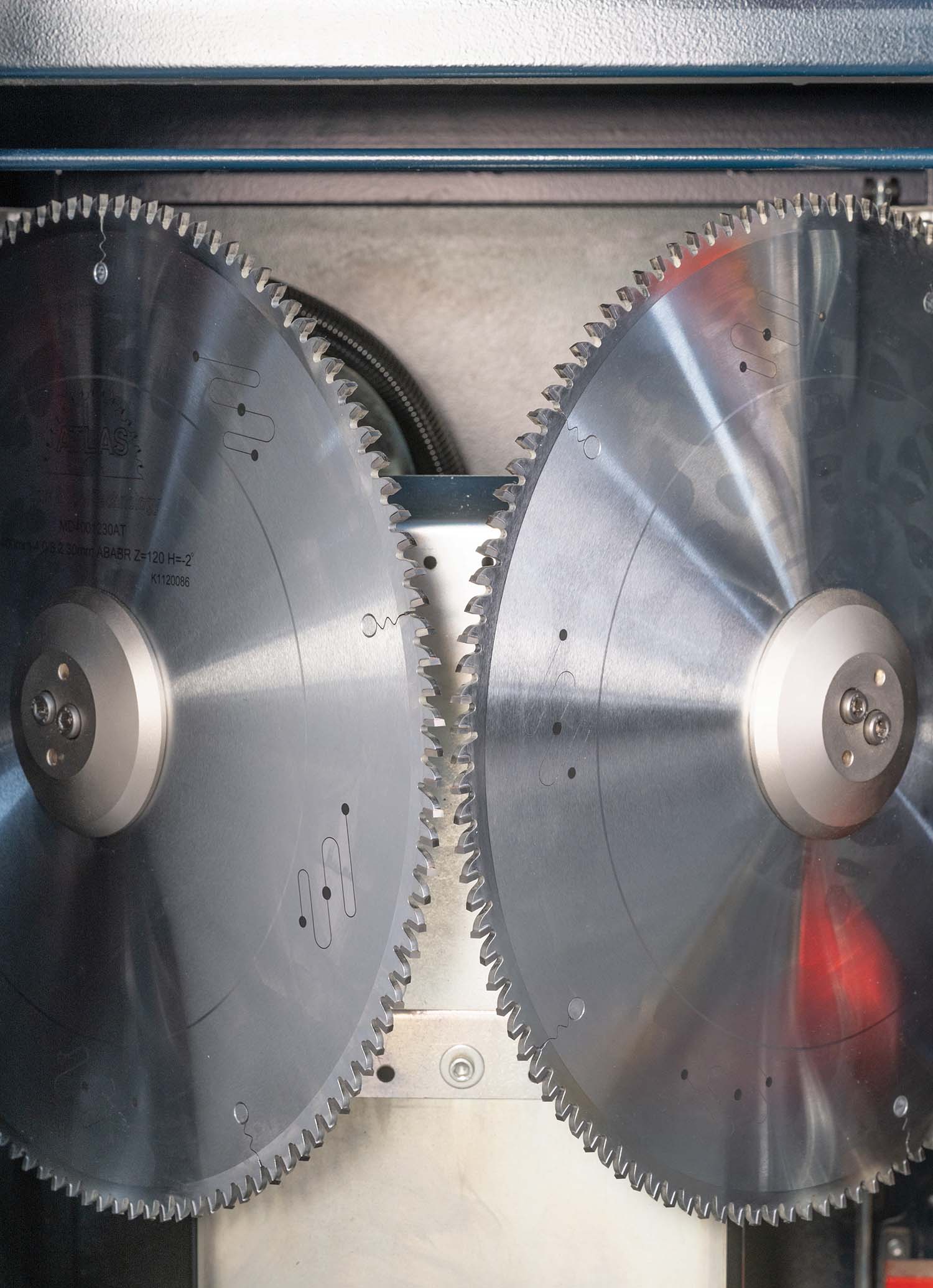

This heavy duty drop saw is built for medium to high production environments. Its unique pneumatic control system results in a very smooth down-stroke movement, precise cut, and a quick return process. Two saw blades are fixed at 45 degree angles and vertically move up and down. With each stroke, the two miters are cut from the moulding with the least amount of scrap. During the cutting process, the moulding is held firmly in place by four ten pneumatic clamps ensuring high quality cutting.

The T-400 EVO has a fully integrated measuring system and it is suitable for custom framers as well as production operations. The measuring system simplifies and speeds up the process with quick change over to different lengths by recalling stored programs initiated through the touch-screen controller.

A blue industrial machine with a central control panel and long horizontal arms, designed for precision work.
Easily access thousands of profile programs

Unique Performance Features

Programmable independent vertical and horizontal clamping parameters
Programmable blade descent speed and vertical blade safety guards based on moulding profiles
Moulding cut counter sensor providing data for each job and over a period of time.

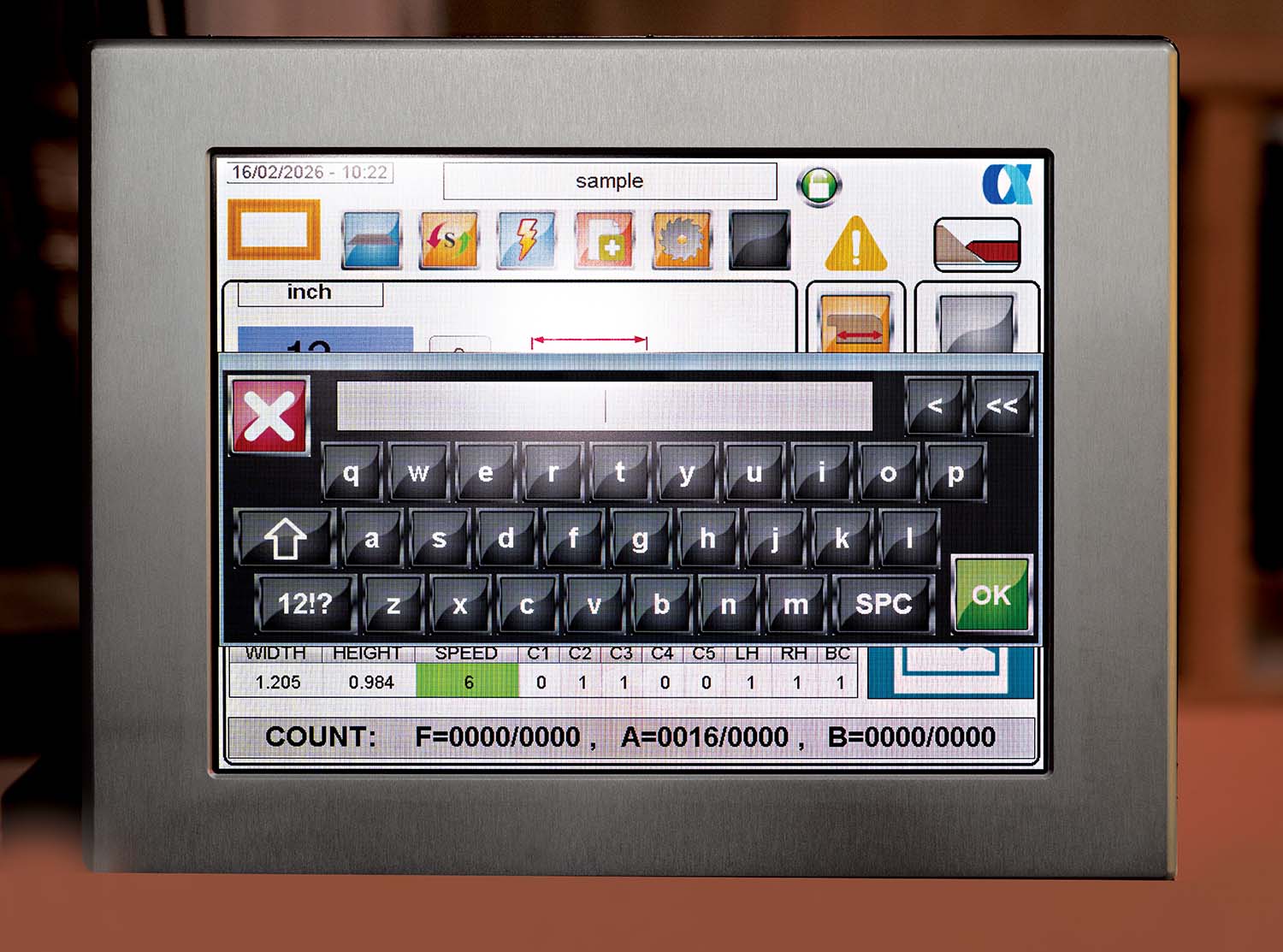

10” touchscreen with user friendly graphic menu for programming and executing the moulding cutting jobs

CONTACT

Safety Features

Fully Enclosed Work Unit with No External Moving Parts
Emergency Push Button Cut-off Switch
Automatic Security Locking Front and Rear Doors
Automatic Vertical Blade Safety Guards
Two-handed Operation to Actuate Saw Cutting Process
Motor Brake System
Fail-safe Descending Head
CE Compliant

Electrical & Pneumatic Requirements

Dust Collection Scrap Chute - 2 Ports 3 ½” (80mm)
Power Requirements 3 Phases – 230/400 Volt – 50/60Hz - 3Kw
Air Requirements 100 psi - 4 cfm - 8Nl
Oil Filter Pressure Regulator

Replacement & Accessory Items

P/N	Item Description
TA-400120AB3	Saw Replacement Blade for Wood and Soft Materials – 400mm x 30mm
04-049	Table Extension Arm - 48” Left

Sales & Technical Documents

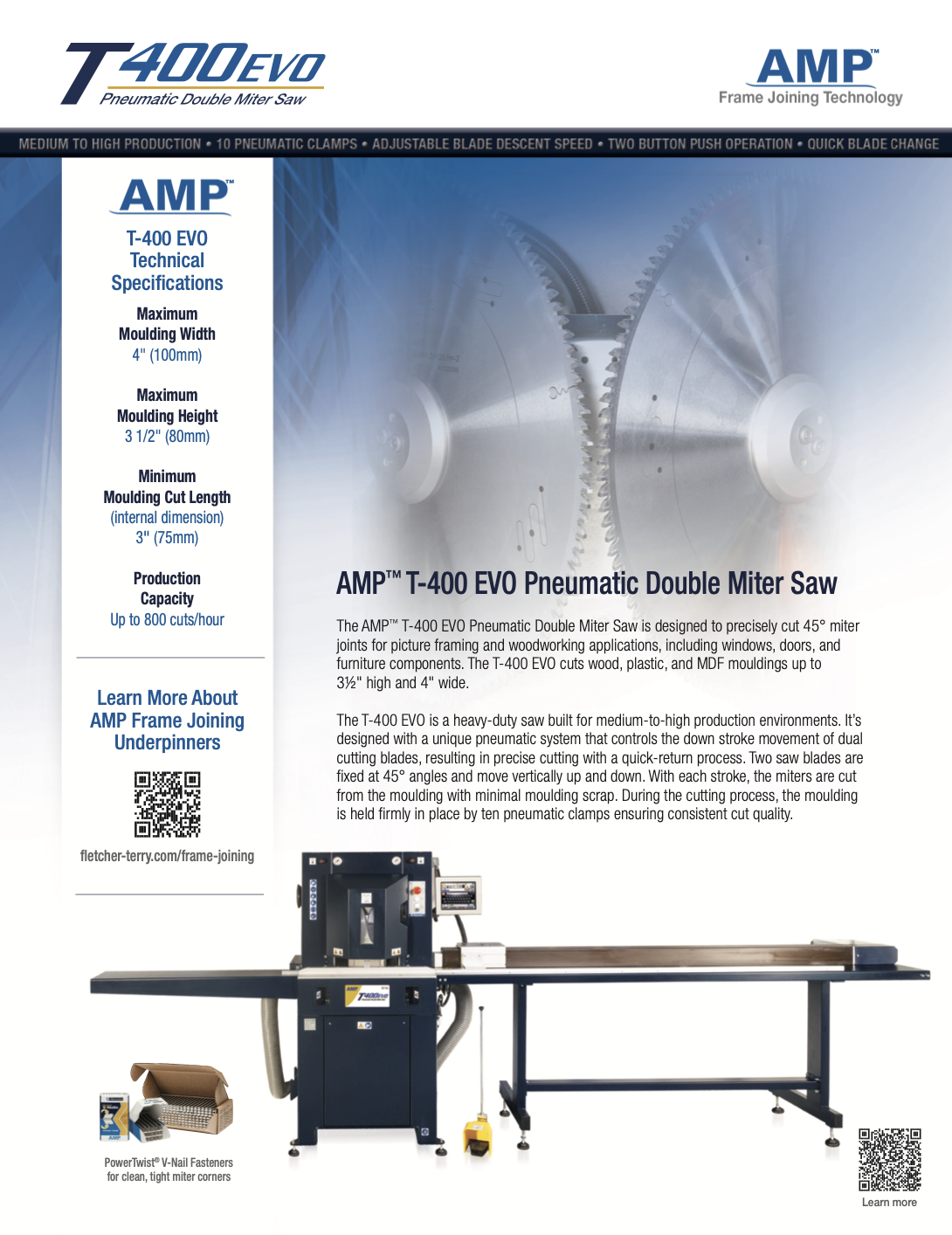

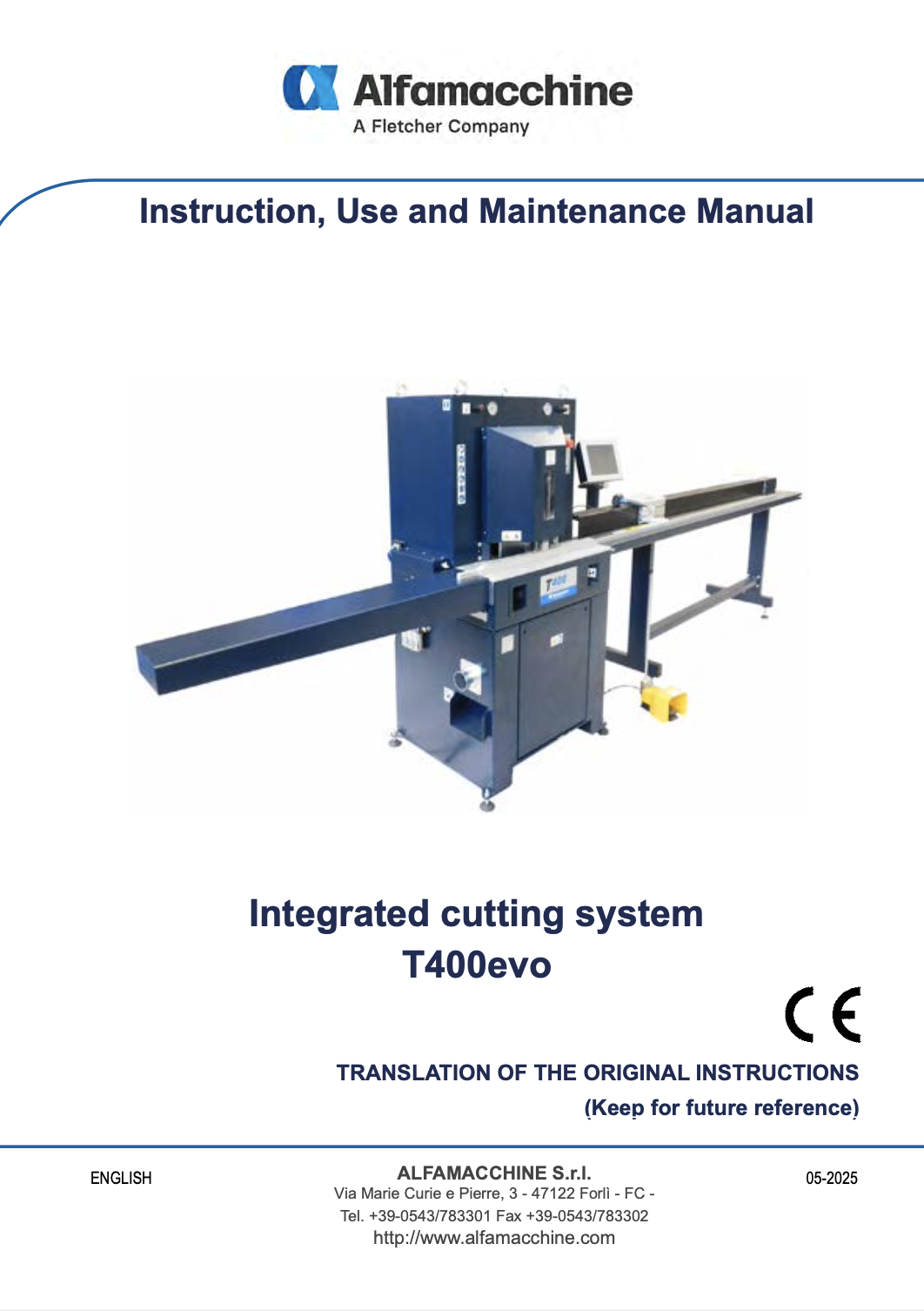

T-400 EVO Owners Manual	T-400 EVO Sell Sheet
