Whether you are starting a new operation, expanding capacity, replacing equipment, or improving efficiency, flexible financing can help you move forward with confidence. Explore your options for AMP™ frame joining systems and and Fletcher^® cutting equipment that align with your budget and business goals.

U-500 Single Channel Underpinner – Single and Multi-Level Joining

AMP’s U-500 is recommended for high-volume production facilities that require the primary use of a single sized V-Nail for frame joining. The U-500 has the same user-friendly touch screen interface as our U-600 Underpinner. The only difference between the two models is the U-500 has single channel compared to a multi-channel capacity with the U-600 unit.

The U-500 has the capability of joining single level or multi-level frames depending on the joining requirement. The maximum stroke height for multi-level joining is 3/4".

The unit’s standard software package controls all the settings and parameters for joining in a single or multi-level performance mode.

The U-500 has the capability of joining 45 and 90 degree angles.

Machine handles frame joining requirements commonly found in picture framing, woodworking (Door Trim), canvas stretcher bar, modular home and mirror frame joining.

Multi -Level Joining

Unique Performance Features

User friendly touch-screen P.C. operation with data storage for 5,000 frame profiles
Integrates Bar Code Scanner option for production efficiency
Features a three knob adjustment fence for compensating moulding cuts
Join either from front or back of machine
Easy table tilt adjustment
Machine handles all types of wood, plastics, and MDF materials

Former Model Reference - VN4MP

CONTACT

Purchase Package - Single Level Unit

Machine P/N 04-006

	U-500 Purchase Package
(1)	7MM Nail Head
(1)	10MM Nail Head
(1)	12MM Nail Head
(1)	Single Vertical Positive Placement Clamp
(1)	Single Metal Pressure Plate
(1)	Double Metal Pressure Plate
(2)	Blue Rubber Pads (SW)
(2)	Yellow Rubber Pads (MW)
(2)	Black Rubber Pads (HW)
(1)	C.A.P.S Operating Software
(1)	3 Stage Air Pressure Filter Regulator
(1)	Adjustable Fence - 3 knobs
(1)	Front Horizontal Clamp
(1)	4mm Allen wrench
(1)	5mm Allen wrench
(1)	6mm Allen wrench
(1)	8mm Allen wrench
(1)	Touch screen PC Panel
(1)	Magnetic V-Nail pick up tool
(4)	Machine base levelers
(1)	Fence template 4-6-8 side
(1)	Floor Stand
(1)	Machine manual

Purchase Package - Multi-Level Unit

Machine P/N 04-016

	U-500 Purchase Package
(1)	7MM Multi-Level Nail Head
(1)	12MM Multi-Level Nail Head
(1)	Single Vertical Positive Placement Clamp
(1)	Single Metal Pressure Plate
(1)	Double Metal Pressure Plate
(2)	Blue Rubber Pads (SW)
(2)	Yellow Rubber Pads (MW)
(2)	Black Rubber Pads (HW)
(1)	C.A.P.S Operating Software
(1)	3 Stage Air Pressure Filter Regulator
(1)	Adjustable Fence - 3 knobs
(1)	Front Horizontal Clamp
(1)	4mm Allen wrench
(1)	5mm Allen wrench
(1)	6mm Allen wrench
(1)	8mm Allen wrench
(1)	Touch screen PC Panel
(1)	Magnetic V-Nail pick up tool
(4)	Machine base levelers
(1)	Fence template 4-6-8 side
(1)	Floor Stand
(1)	Machine manual

Computerized Air Pressure System

AMP's Computerized Air Pressure System (C.A.P.S.) is the latest operating feature for its U-600 Production Underpinner solutions offering the following benefits to any production based joining operation.

This new system provides the following production features...

Eliminates the need of making manual air pressure adjustments for Vertical Clamping Mechanism
Maximizes production efficiently with pre-set clamping pressures
Eliminates moulding material damage by controlled vertical clamping pressure
"Soft" vertical clamping option reducing the chance of moulding surface damage with very soft materials or surfaces with gesso or other delicate finishes

To utilize this new feature, the operator stores in the air pressure values needed depending on the moulding hardness for each of the frame profiles stored in memory. By setting a pressure setting into the memory database, programs recalled through the key pad or barcode scanning option automatically sets the clamping air pressure needed.

All new equipment purchases for U-500 now include the C.A.P.S feature.

Replacement Parts & Accessories - Single Level & Multi-Level

Replacement Clamping Pads

a close-up of a machine

P/N	Item Description
04-024	Black Rubber Pad (HW)
04-025	Yellow Rubber Pad (MW)
04-026	Blue Rubber Pad (SW)

Replacement Nail Heads - Single Level

several grey and black electrical devices

P/N	Item Description
04-090	Nail Head - 3mm
04-095	Nail Head - 5mm
04-091	Nail Head - 7mm
04-092	Nail Head - 10mm
04-093	Nail Head - 12mm
04-094	Nail Head - 15mm

Replacement Nail Heads - Multi-Level

P/N	Item Description
394950130	Multi -Level Nail Head - 5mm
394950190	Multi -Level Nail Head - 7mm
394950100	Multi -Level Nail Head - 10mm
394950110	Multi -Level Nail Head - 12mm
394950120	Multi -Level Nail Head - 15mm

Extension Wings

aluminium

P/N	Item Description
04-032	Extension Wings Kit

P/N	Item Description
04-072	Barcode Scanner
04-167	Magnetic Base for Vertical Clamp Assembly
04-020	Single Metal Pressure Plate
04-022	Double Metal Pressure Plate
04-023	Magnetic - Single Metal Pressure Plate
41-221	Single Vertical Placement Clamp Kit

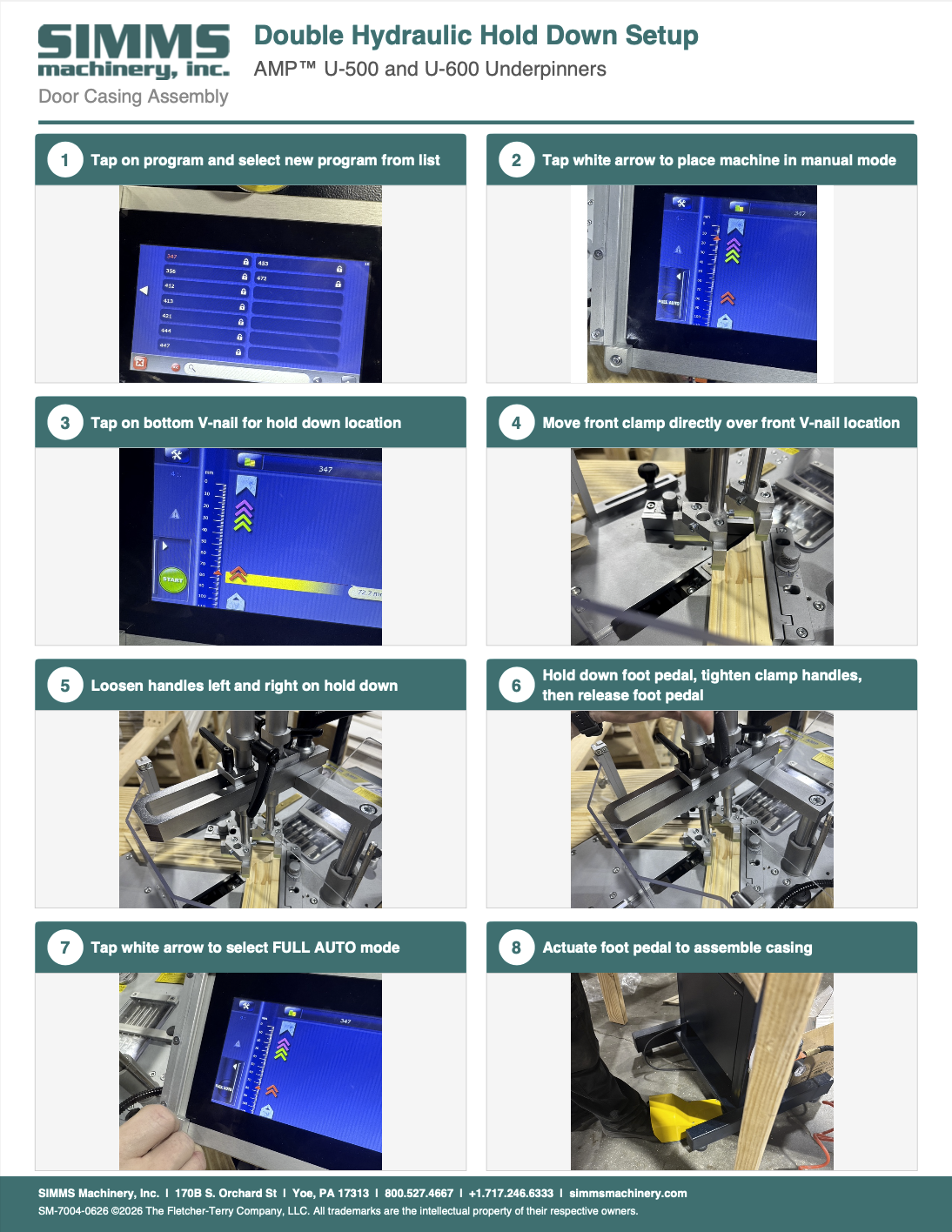

41-142	Double Hydraulic clamping Mechanism

Power Requirements

115/220 Volt 50/60 Hz.
Compressed Air 4NI at 5 Bar
CE Compliant

Sales & Technical Documents


Instruction Manual	U 500 Single-Level - Multi-Level	U 500 Instructions Manual

Moulding Width (min to max)	Moulding Height (min to max)	Max Distance Between V-Nails (stroke)
¼” up to 4 ½” (6-105 mm)	¼” up to 3 ¼” (6-80 mm)	5 ¾” (145mm)
Pre-set V-Nail Position Stops	V-Nail Sizes	V-Nail Channel Capacity
Multiple	5, 7,10,12,15 mm (SW-HW-HDF)	220 V-Nails/channel

Length:	27” (686mm)
Width:	31.5” (800mm)
Height:	51.5” (965mm)
Weight:	309 lbs (140kg)
