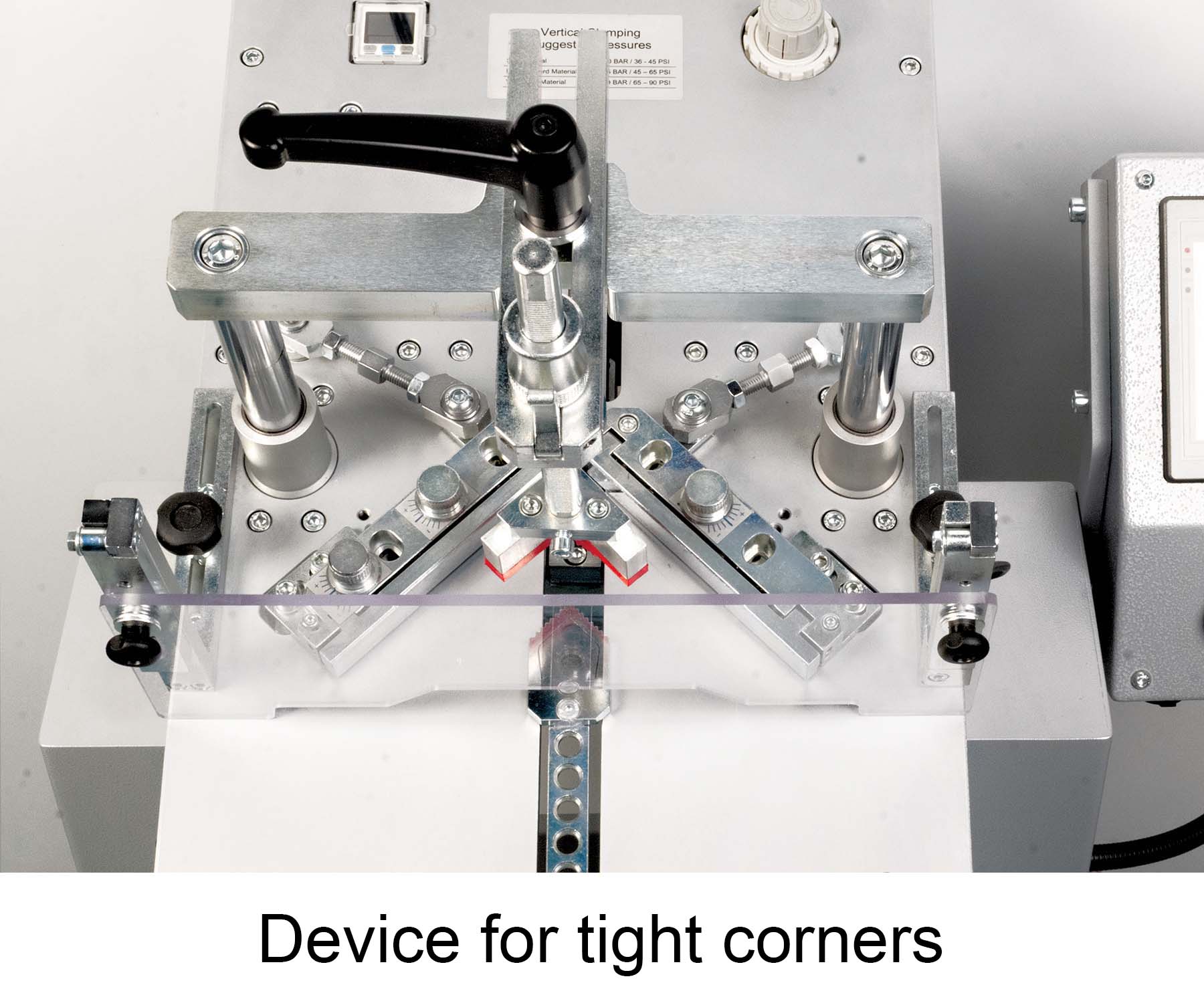

Fletcher Business Group - Adjustable tilting fence with enhanced corner tightening functionality
- User friendly touch-screen operation with data storage for over 5,000 frame profiles
- Integrates Bar Code Scanner option for production efficiency
- Join from either front or back of the machine
- Easy table tilt adjustment
- Handles all types of wood, plastics, and MDF materials

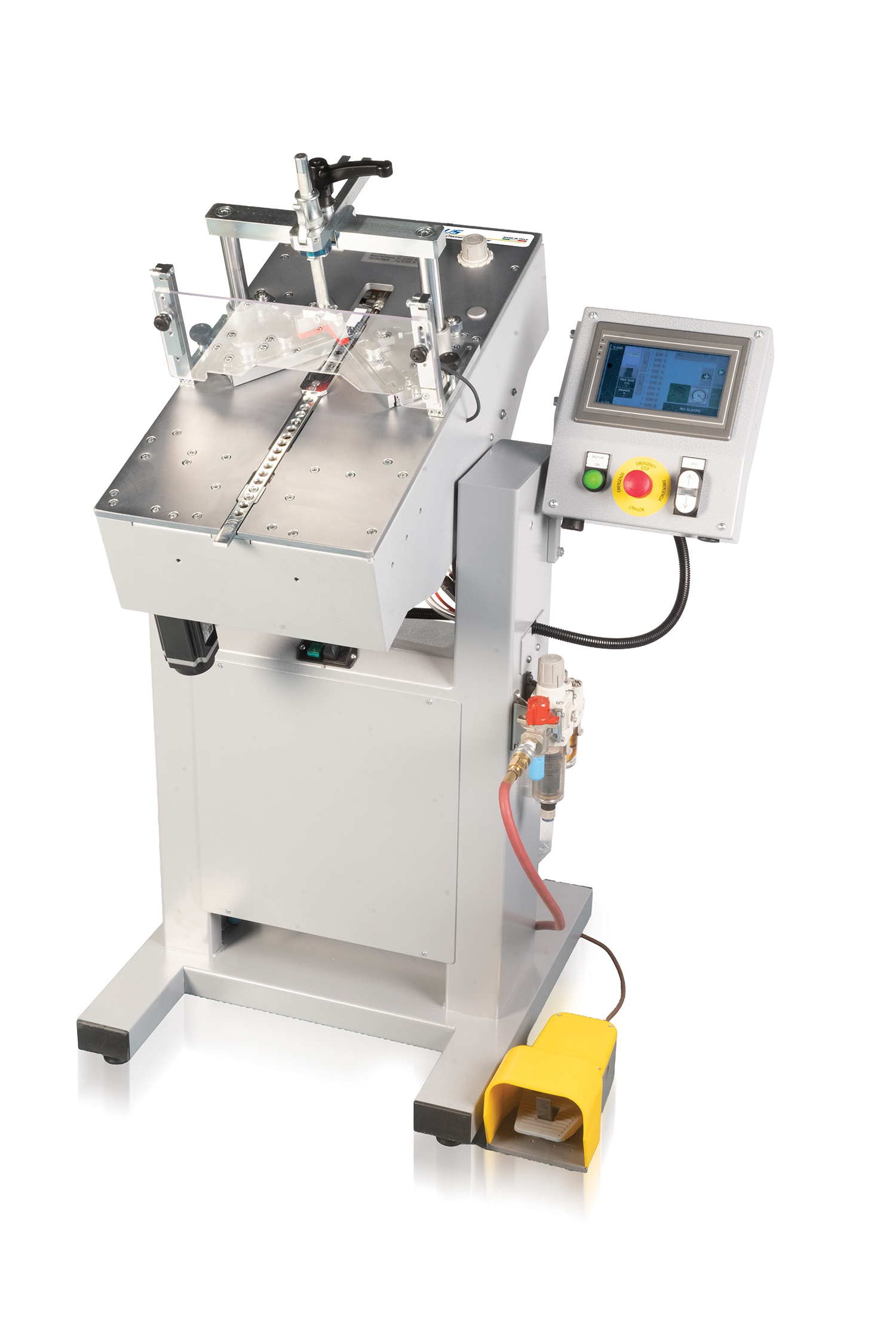

AMP™ U-500 PLUS Underpinners - Frame Assembly Machines
AMP™ U-500 PLUS Memory Programmed/Single Channel Underpinner
The AMP™ U-500 PLUS underpinner is built for high-volume production environments that primarily run a single-size V-Nail for fast, repeatable frame joining. Its user-friendly touch-screen operation stores over 5,000 frame profiles and supports optional barcode scanning to streamline workflow and improve efficiency.
The U-500 PLUS joins 45 and 90 degree assemblies, offers front- or back-side joining, and features a three-knob adjustment fence to help compensate for moulding cuts; an optional vertical double hydraulic pressure clamp is available for superior clamping.
The U-500 PLUS handles frame-joining requirements commonly found in picture framing, woodworking (door trim), canvas stretcher bars, modular homes, and mirror frame joining, and works with wood, plastics, and MDF.
Empty heading
Unique Performance Features
| Machine U-500 PLUS PN 04-011 Purchase Package |
| U-500 PLUS Purchase Package | |
| (1) | 5MM Nail Head |
| (1) | 7MM Nail Head |
| (1) | 10MM Nail Head |
| (1) | Single Vertical Positive Placement Clamp |
| (1) | Single Metal Pressure Plate |
| (1) | Red Rubber Pad |
| (1) | Yellow Rubber Pad |
| (1) | White Rubber Pad |
| (1) | 3 Stage Air Pressure Filter Regulator |
| (1) | Adjustable Fence - 3 knobs |
| (1) | Front Horizontal Clamp |
| (1) | 5mm Allen wrench |
| (1) | Touch Screen Panel |
| (1) | Magnetic V-Nail Pick Up tool |
| (4) | Machine Base Levelers |
| (1) | Fence Template 4-6-8 Side |
| (1) | Floor Stand |
| (1) | Machine manual |
Replacement Clamping Pads
| Item Description |
| Red Rubber Pad |
| Yellow Rubber Pad |
| White Rubber Pad |
Replacement Nail Heads
| Item Description |
| Nail Head - 3mm |
| Nail Head - 5mm |
| Nail Head - 7mm |
| Nail Head - 10mm |
| Nail Head - 12mm |
| Nail Head - 15mm |
Extension Wings
| Item Description |
| Extension Wings Kit |
| Item Description |
| Barcode Scanner |
| Magnetic Base for Vertical Clamp Assembly |
| Single Metal Pressure Plate |
| Magnetic - Single Metal Pressure Plate |
| Single Vertical Placement Clamp Kit |
| Double Hydraulic Clamping Mechanism |
Empty heading
115/220 Volt 50/60 Hz.
Compressed Air 4NI at 5 Bar
CE Compliant
| U-500 PLUS Owners Manual |

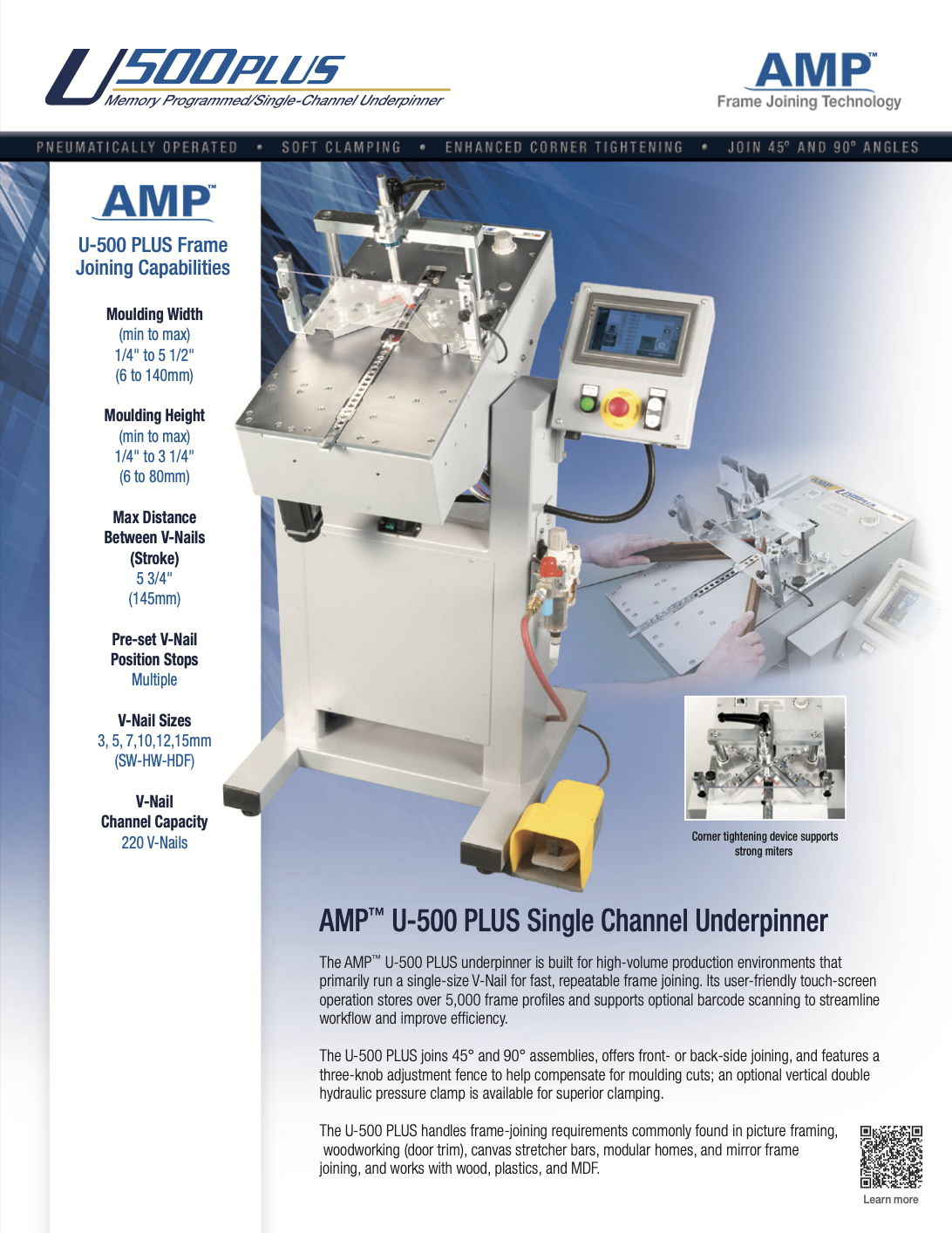

U-500 PLUS Sell Sheet |
Frame Joining Capabilities
| Moulding Width (min to max) |
Moulding Height (min to max) |
Max Distance Between V-Nails (stroke) |
| ¼” up to 5 ½” (6-140 mm) |
¼” up to 3 ¼” (6-80 mm) |
5 ¾” (145mm) |
| Pre-set V-Nail Position Stops |
V-Nail Sizes | V-Nail Channel Capacity |
| Multiple | 5, 7,10,12,15 mm (SW-HW-HDF) |
220 V-Nails/channel |
Machine Dimensions & Weight
| Length: | 27” (680mm) |
| Width: | 35” (880mm) |
| Height: | 56” (1400mm) |
| Weight: | 254 lbs (115kg) |
