AMP™ U-700 Memory Programmed/Multi-Channel Underpinner

The AMP™ U-700 is an advanced frame-joining underpinner designed for picture framing and woodworking applications. It combines sophistication and high performance with operating flexibility for joining picture frames and assembling door and window frames. A key differentiator is its inline vertical clamp, which travels back and forth in line with the driver assembly for precise, consistent joining.

This machine is ideal for medium-type production facilities requiring flexibility for different sized V-Nail fasteners or a common millimeter size through a configurable channel feature.

With profile data storage of over 5,000 different frames, the operator can easily recall any frame profile either alphabetically, numerically through keypad, or scanned using the barcode reading option. The software includes the functionality of applying a soft vertical clamping motion reducing moulding damage with soft materials or delicate finishes.

Unique Performance Features

Equipped with five individual V-Nail storing channels, capable of holding up to 220 V-Nails each

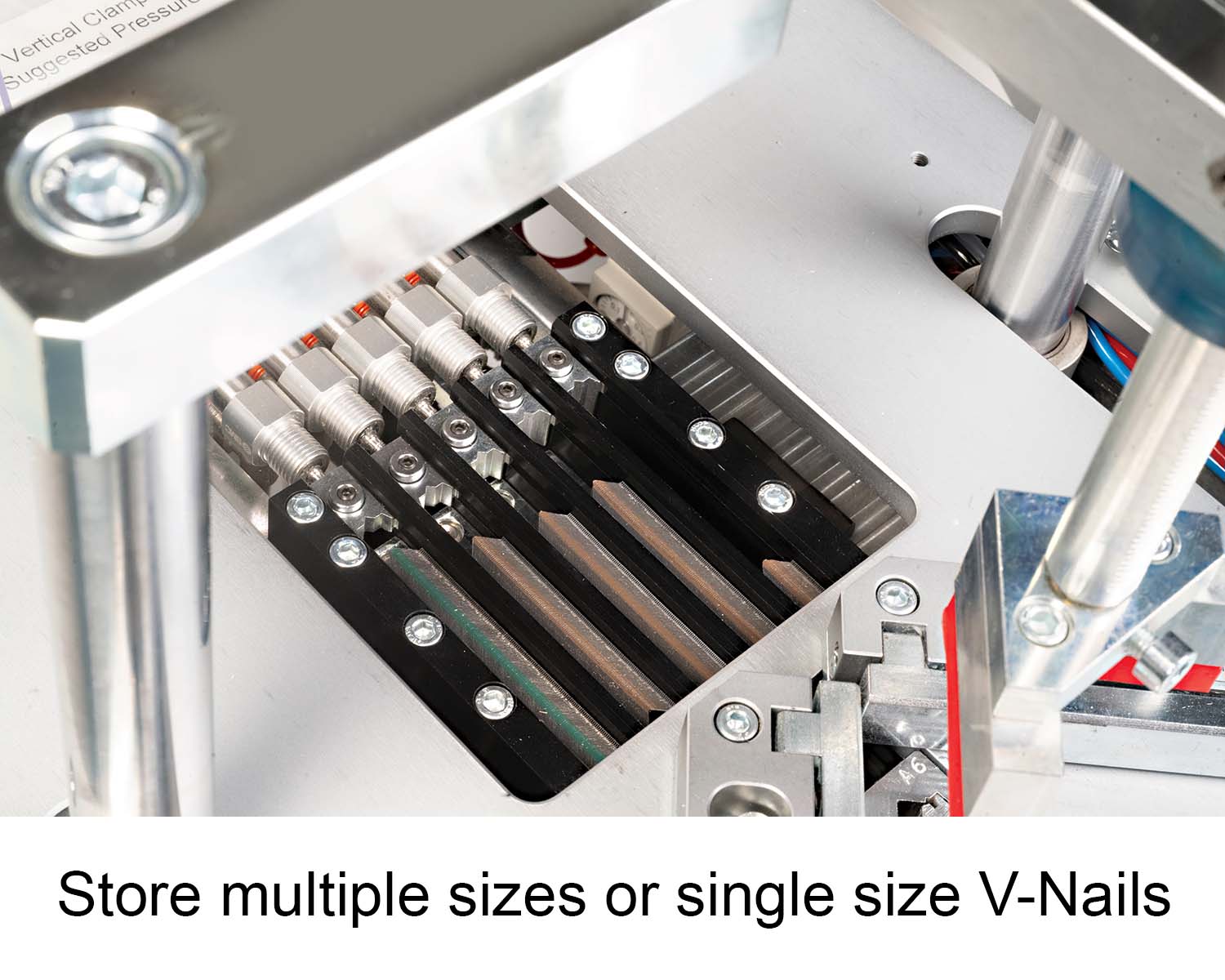

V-Channels can store multiple sizes or one common size for production uptime and productivity
User friendly touch-screen operation with data storage for 5,000 frame profiles
Bar Code Scanner option for production integration and efficiency
Join from front or back of machine
Handles all types of wood, plastics, and MDF materials

Create strong, tight miter joints

CONTACT

Purchase Package

	Machine U-700 PN 04-012 Purchase Package
(1)	“Multi-Sized” Nail Head
(1)	Vertical Positive Placement Clamp
(1)	Single Metal Pressure Plate
(1)	Red Rubber Pad
(1)	Yellow Rubber Pad
(1)	White Rubber Pad
(1)	Front Horizontal Clamp
(1)	5mm Allen Wrench
(1)	Magnetic V-Nail Pick-up Tool
(1)	Touch Screen Panel
(4)	Machine Base Levelers
(1)	Fence Template 4-6-8 Side
(1)	Touch Screen Protector
(1)	Machine Manual
(1)	3 Stage Air Pressure Filter Regulator
(1)	Adjustable Fence - 3 knobs

Replacement Parts & Accessories

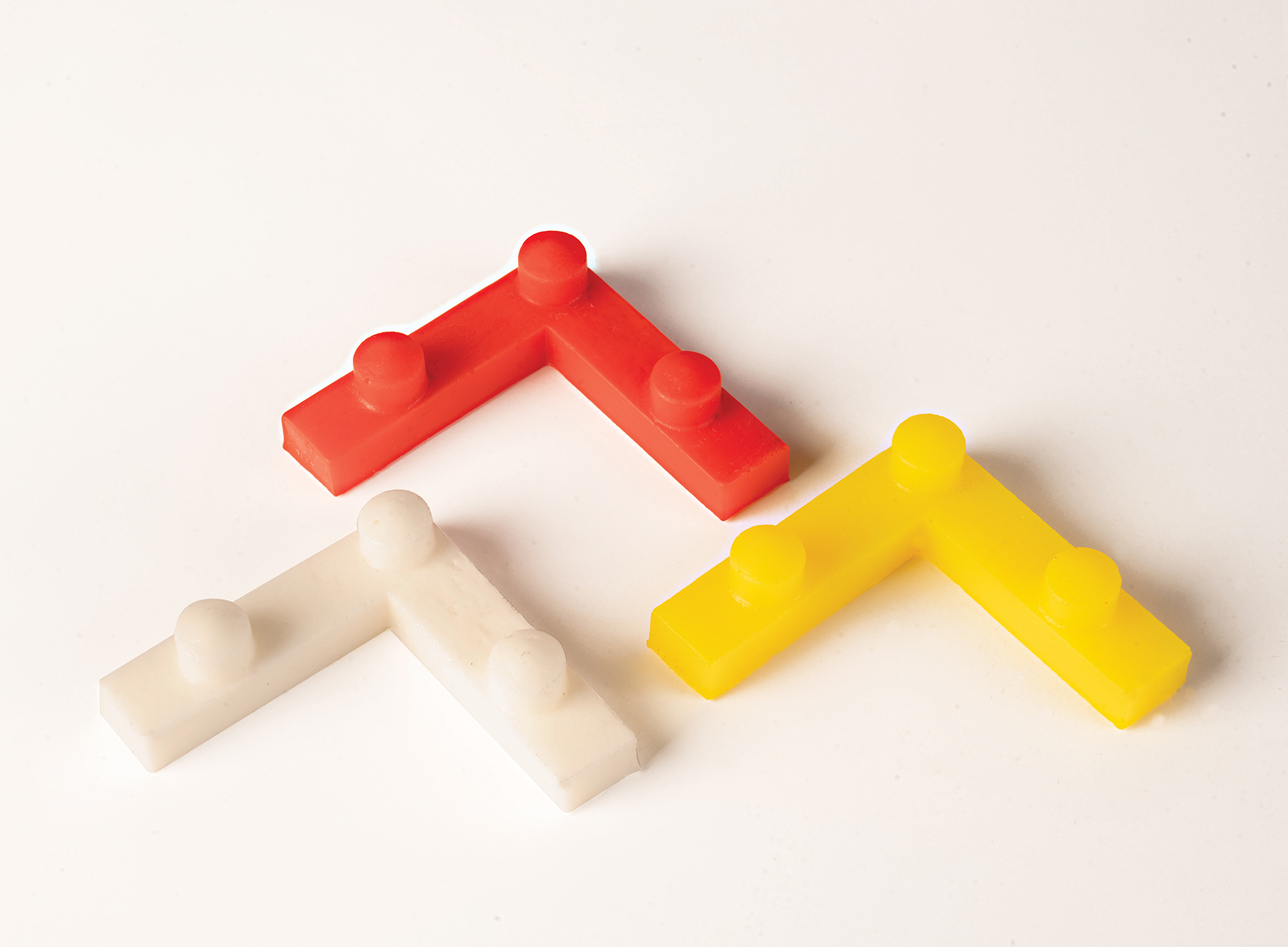

Replacement Clamping Pads

a close-up of a machine

Item Description

Red Rubber Pad

Yellow Rubber Pad

White Rubber Pad

Replacement Nail Heads

several grey and black electrical devices

Item Description

Nail Head - 3mm

Nail Head - 5mm

Nail Head - 7mm

Nail Head - 10mm

Nail Head - 12mm

Nail Head - 15mm

Extension Wings

aluminium

Item Description

Extension Wings Kit

Item Description

Barcode Scanner

Magnetic Base for Vertical Clamp Assembly

Single Metal Pressure Plate

Magnetic - Single Metal Pressure Plate

Single Vertical Placement Clamp Kit

Double Hydraulic Clamping Mechanism

Power Requirements

220 V 50Hz

115 V 60 Hz

Compressed Air 4NI at 5 Bar

CE Compliant

Sales & Technical Documents

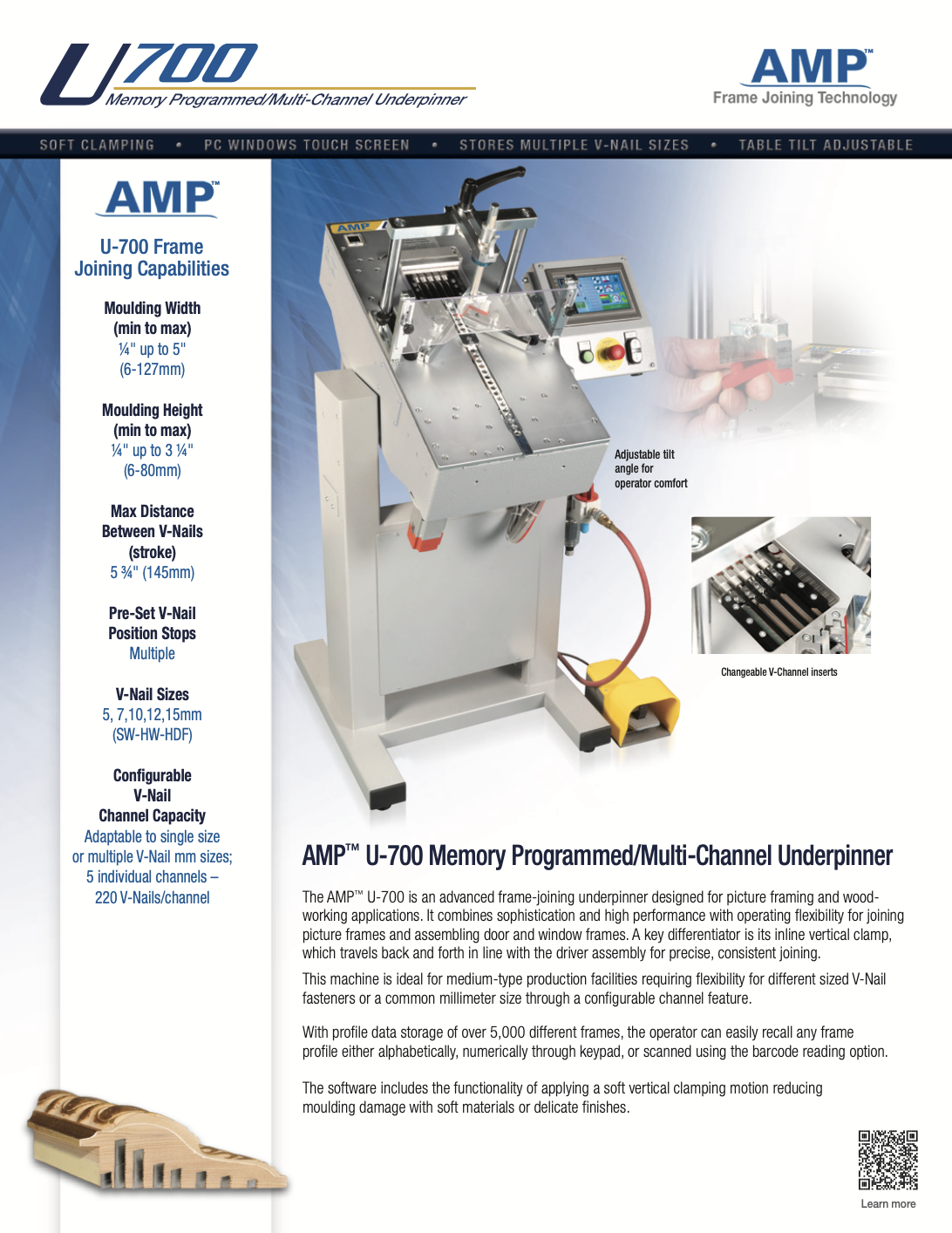

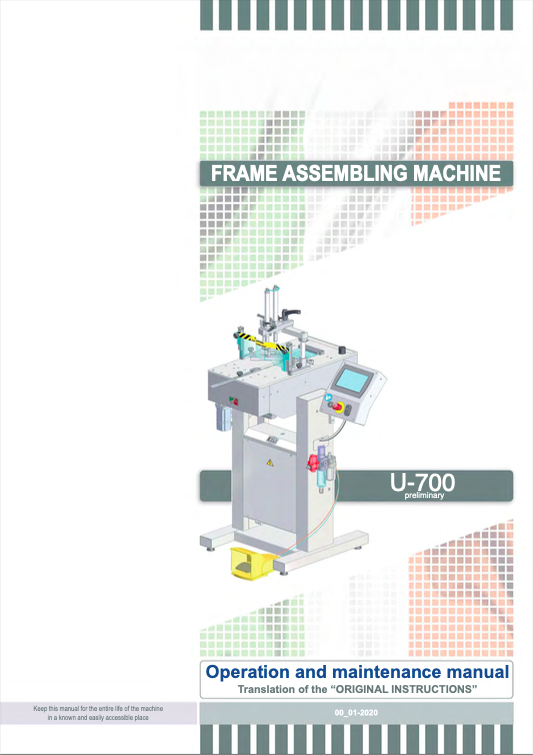

U-700 Owners Manual *COMING SOON!*	U-700 Sell Sheet

Moulding Width (min to max)	Moulding Height (min to max)	Max Distance Between V-Nails (stroke)
¼” up to 5” (6-127 mm)	¼” up to 3 ¼” (6-80 mm)	5 ¾” (145 mm)
Pre-set V-Nail Position Stops	V-Nail Sizes	V-Nail Channel Capacity
Multiple	5, 7,10,12,15 mm (SW-HW-HDF)	Adaptable to single size or multiple V-Nail mm sizes 5 individual channels – 220 V-Nails/channel

Length	27” (680mm)
Width	35” (880mm)
Height	56” (1400mm)
Weight	298 lbs (135kg)
