Machine Dimensions and Weight

Saw Dimensions: 48"L x 24"W x 54"H

Manual Measuring Table Dimensions: 120"L x 12"W x 12"H

Saw Weight: 500 lbs

Manual Measuring Table Weight: 235 lbs

Product Configuration and Part Numbers

P/N	Description
04-231	MN-355 - 1.5Hp (Includes 96" Measuring Table, Vertical Clamps, Set of Saw Blades
04-230	MN-355 - 1.5 HP with Clamps (No blades include)
04-232	MN-355 - 1.5 HP with Inverter and Clamps (No blades include)
02-228	AG 2000 - M - Cut Measurement System

Safety Features

Voltage Overload Protection

Guarding for Foot-Pedal, Drive Belts and Saw Blades

Totally enclosed Fan Cooled Motors

OSHA required NEMA-12 oil-tight Electric Circuitry Control

Accessory Items

P/N	Description
04-222	Vertical Pneumatic Clamp Set
04-223	Horizontal Pneumatic Clamp Set (recommended for metal cutting)
04-224	Blade Lube System - Non Staining Formula

Sales & Technical Documents


MN-355 Double Mitre Saw	MN-355 Installation/Operations Manual

It's all about the saw blade, right?

Reduce production downtime. Our Zero Turn Services (ZTS) offers blade management services and inventory program planing, ensuring you'll have less downtime due to saw blade changes and rotations.

REVITALIZE YOUR BLADE

MN-355 Double Miter Saw

(Direct Pistorius Saw Replacement)

AMP’s MN-355 is a Heavy Duty Double Miter Saw designed to cut 45° mitre joints in Wood, MDF, Plastics and Aluminum Materials. The heavy duty design is achieved using precision machined cast components for saw head, pivot assembly and motor base.

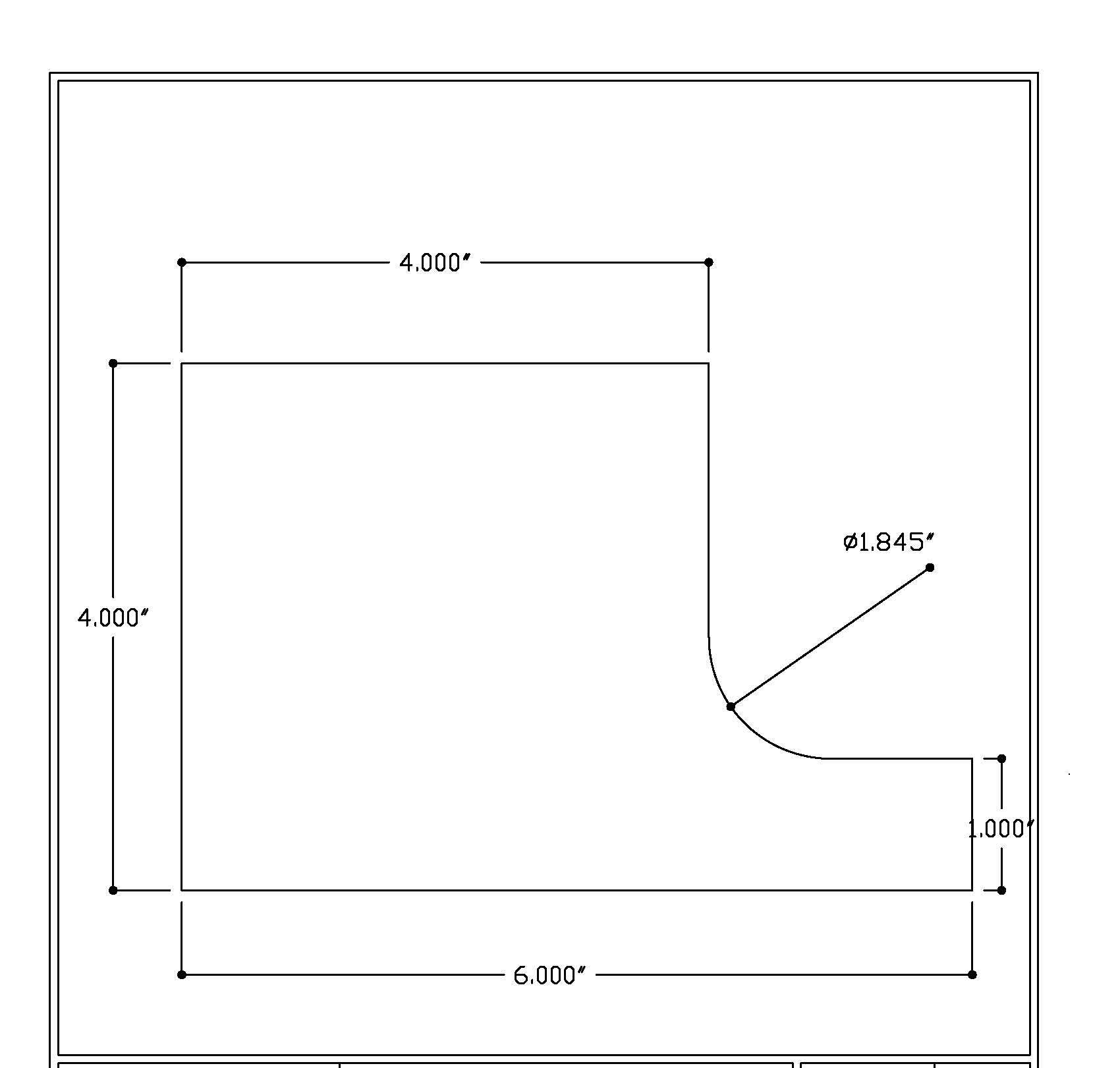

Click here to view a line drawing showing the profile cutting capabilities for the MN-355 Saw.

All portions of the saw base are fabricated with a heavy gauge steel and normalized, a metallurgical process to ensure all stress is removed before machining and drilling for saw cutting heads and guide fence.

The cutting process is foot pedal actuated for production output speed, and minimizes reliance on operator for consistent, accurate and repeatable cutting.

The MN-355 Saw System consists of a 1.5Hp motor, vertical clamps, 96" manual measuring table and a set of Atlas Saw Blades.
